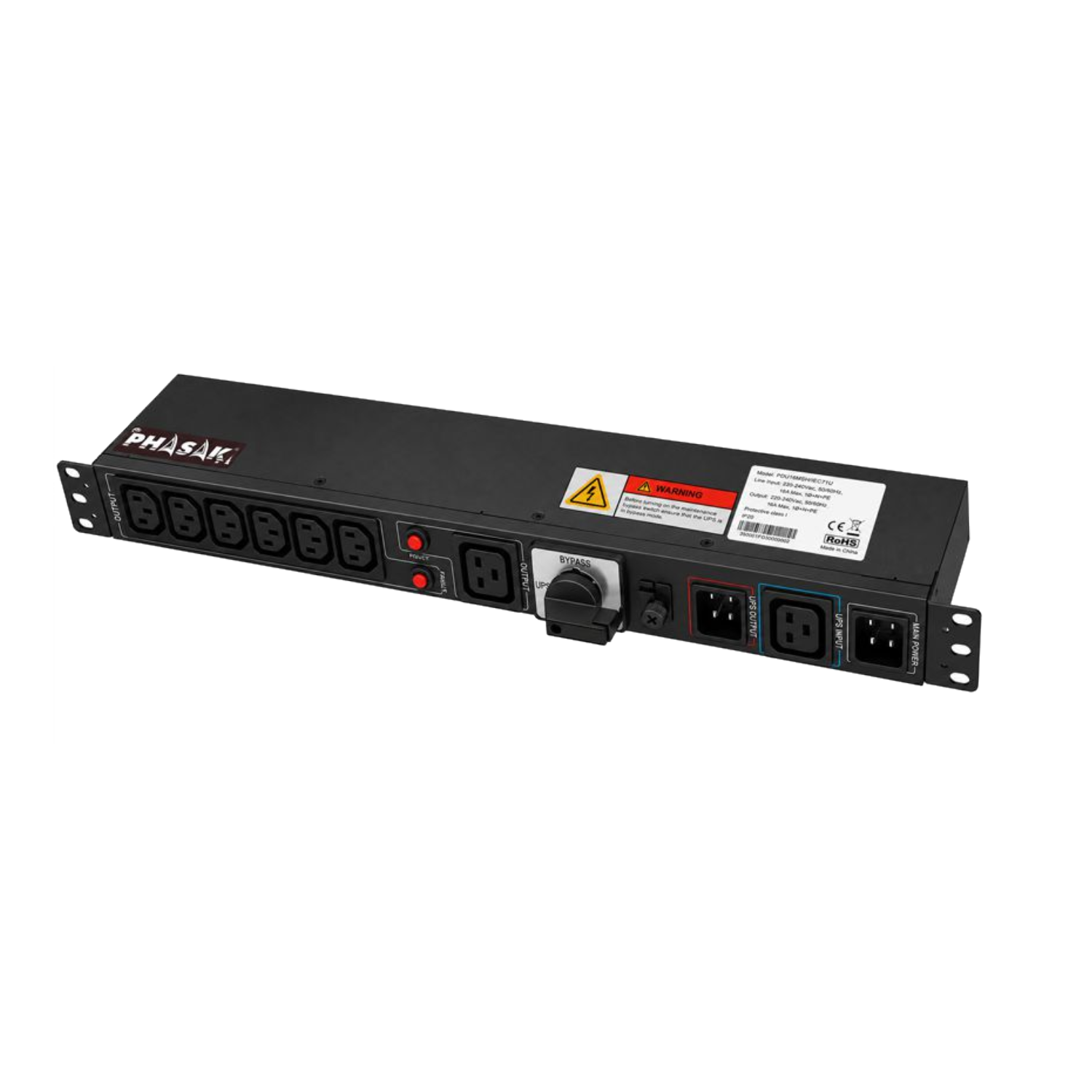

External Maintenance Bypass PHASAK 19″ 16 A for UPS – PH 7916
1U external maintenance bypass for 19″ rack: allows UPS intervention or replacement without cutting power to equipment, using the front UPS / BYPASS selector, and distributes power through 7 IEC outlets.
Description
The PHASAK 19″ external maintenance bypass solves the problem of having to shut down equipment every time the UPS needs servicing. With the front UPS / BYPASS selector, the load switches to direct mains and the UPS can be disconnected, repaired or replaced while equipment remains powered.
It is designed for technical environments, servers, networks and telecommunications, where scheduled UPS maintenance must not result in service downtime.
It also distributes power through 6 IEC C13 outlets —for servers, switches, routers, NVRs and network equipment— and 1 IEC C19 outlet for higher-consumption equipment. Robust metal construction in 1U format for 19″ rack or wall mounting, black finish and front-identified connectors.
Key Features
✔ Maintenance bypass with front UPS / BYPASS selector
✔ UPS intervention without cutting power supply
✔ 6 IEC C13 outlets + 1 IEC C19 outlet
✔ Input 220–240 Vac · 16 A · 3500 W
✔ IEC C20 mains inlet and 1.5 m cable with Schuko plug
✔ UPS connection: IEC C19 to its input and IEC C20 from its output
✔ 1U format for 19″ rack or wall mounting
✔ Magnetic-thermal protection
✔ 3-year warranty
Additional information
| Type | External maintenance bypass |
|---|---|
| Format | 1U · 19" rack or wall |
| Potencia | 3500 W |
| Tomas de salida | 6x IEC C13 + 1x IEC C19 |
| Connector | IEC C20 inlet · 1.5 m cable with Schuko plug |
| Voltage | 220–240 Vac |
| Corriente | 16 A |
| Compatible con | UPS with IEC input and output |
| Garantía | |
| Weight | 1.28 kg |
| Dimensions (H × W × D) | 52 × 433 × 71 mm |
| Packaging | 433 × 71 × 52 mm |
