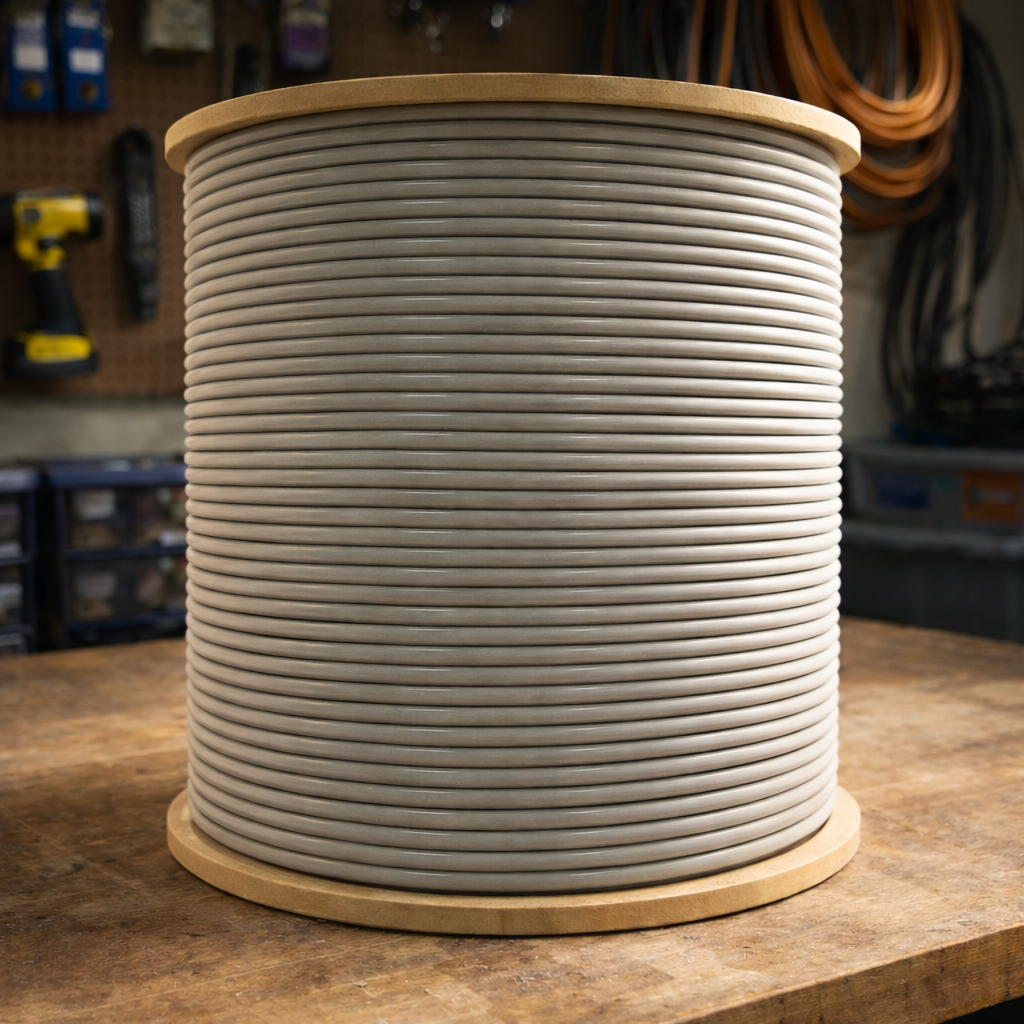

S/FTP Cat. 6A Solid Copper Cable Spool PHASAK CU (CPR Cca) 23AWG Fluke LSZH 305 m

Description

S/FTP Cat.6A LSZH Cable with CPR Cca Certified

The PHR 6202 is an S/FTP Cat.6A twisted pair cable manufactured in 100% copper (solid), with LSZH (Low Smoke Zero Halogen) jacket and CPR Cca certification. Designed for indoor installations where high fire safety and 10 Gigabit links with excellent noise immunity are required.

Recommended Applications

• Structured cabling in buildings with CPR Cca requirements (offices, retail, education, healthcare).
• Horizontal backbone and floor trunks with 10 GbE demand.
• Environments with interference: dense access electronics, technical rooms, broadcast.

Key Features

• Type: S/FTP — each pair with foil + overall braid for maximum EMI/RFI protection.
• Category: Cat.6A (up to 500 MHz), suitable for 10 Gigabit Ethernet according to link certification.
• Conductor: 100% copper, solid for electrical stability.
• Jacket: LSZH — low smoke emission and zero halogens.
• CPR: Cca (certified) — priority fire reaction in projects.
• Length: 305 m (spool/dispenser box).
• Compatibility: termination with shielded Cat.6A keystones and patch panels following T568A/B.

Installation Best Practices

• Respect bend radius and maximum pulling tension during installation.
• Maintain twisted pairs up to termination; crimp with Cat.6A connectivity.
• Perform grounding of the shield and use shielded components throughout the channel.
• Certify the link with the test plan corresponding to Cat.6A.

Consult the PHASAK catalogue (PDF) to view the complete range of cables and accessories.
