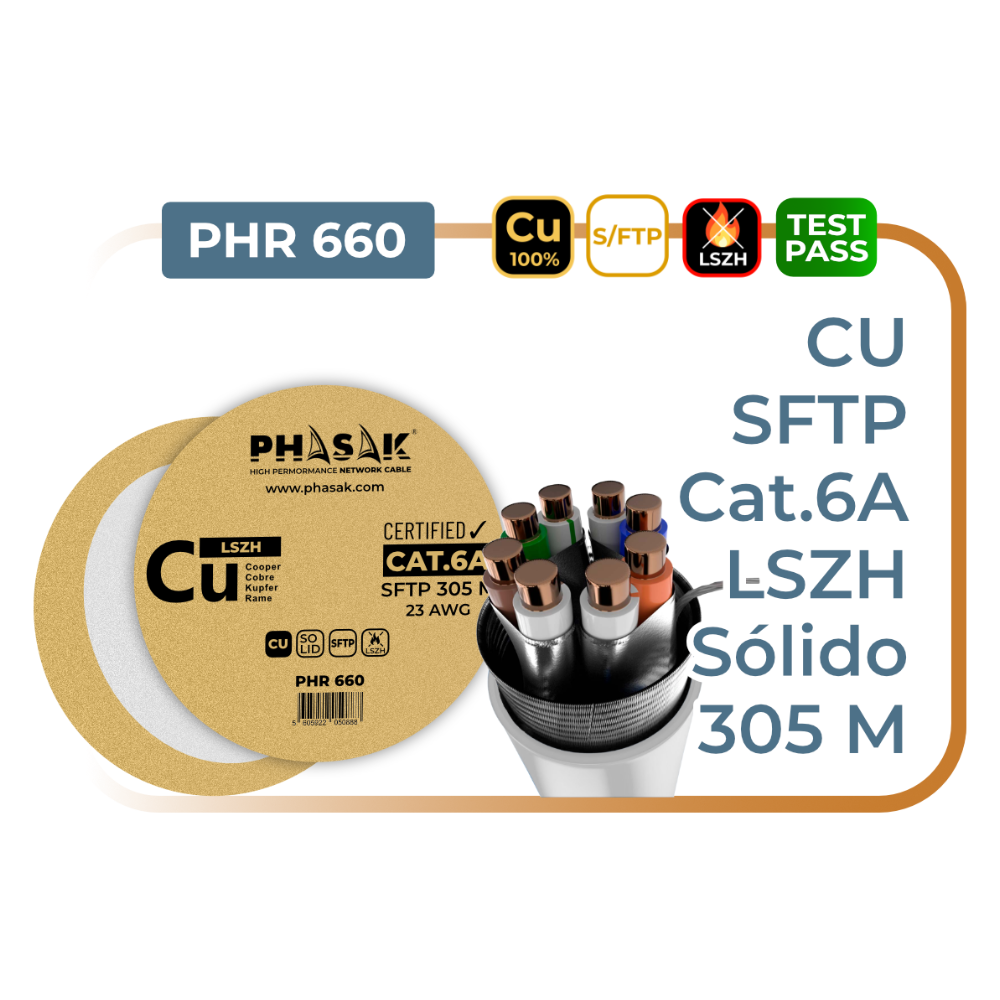

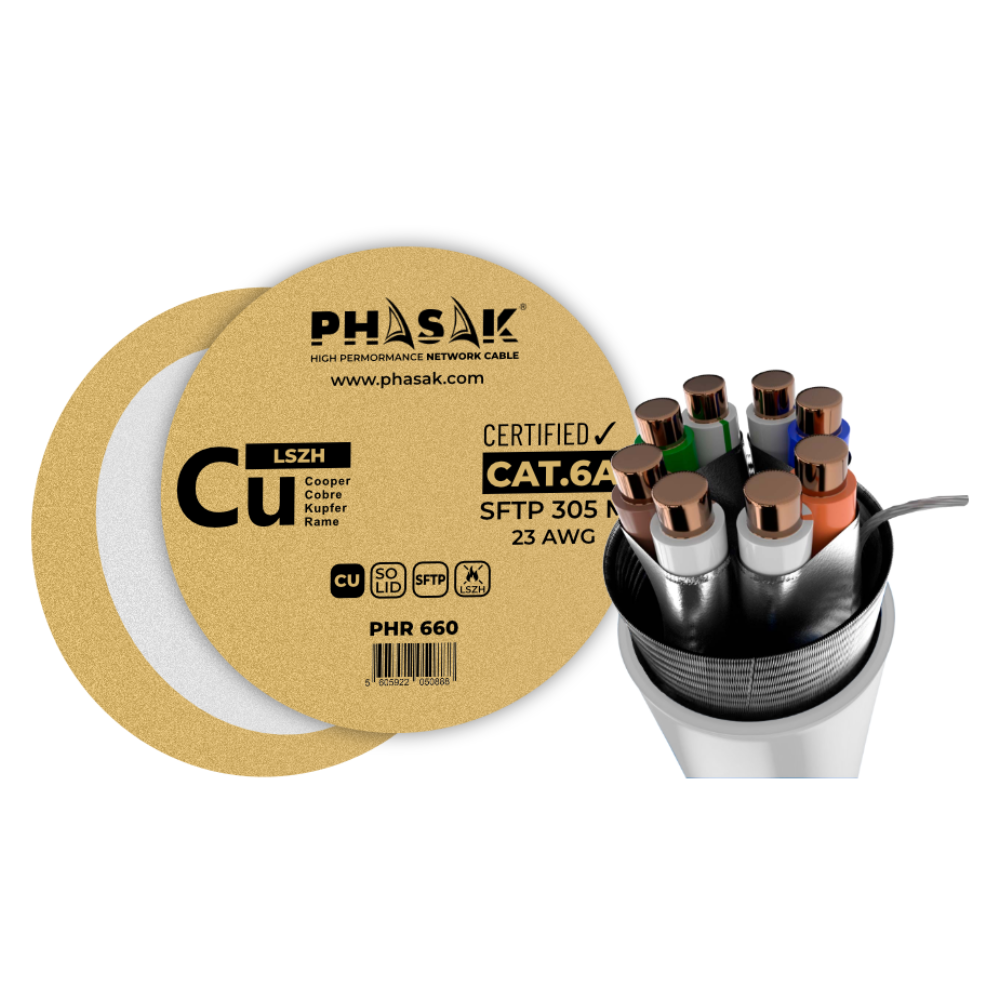

100% Solid Copper S/FTP Certified LSZH PHASAK AWG23 Cat.6A 305 m network cable – PHR 660
S/FTP Cat.6A network cable of 100% copper (solid AWG23), shielded per pair and overall braid for stable 10 Gigabit links in demanding environments. Presentation in pull box. Reference PHR 660.
Ideal for high-performance indoor structured cabling.
Description
S/FTP Cat.6A copper cable for 10 GbE
The PHR 660 is an S/FTP twisted-pair cable (each pair with foil + overall braid) of category 6A manufactured in 100% copper (solid AWG23). It is designed for indoor installations that require high bandwidth, low crosstalk and excellent noise immunity, with support for 10 Gigabit Ethernet according to topology and link certification.
Recommended applications
- Horizontal backbone and floor trunks with 10 GbE demand.
- High-density corporate networks, edge and access electronics.
- Interference-sensitive systems (broadcast, healthcare, light industry).
Key features
- Type: S/FTP – shielded per pair (Foil) + overall braid.
- Category: Cat.6A (up to 500 MHz).
- Conductor: 100% copper, solid AWG23.
- Use: indoor installations (ducting/conduit recommended according to regulations).

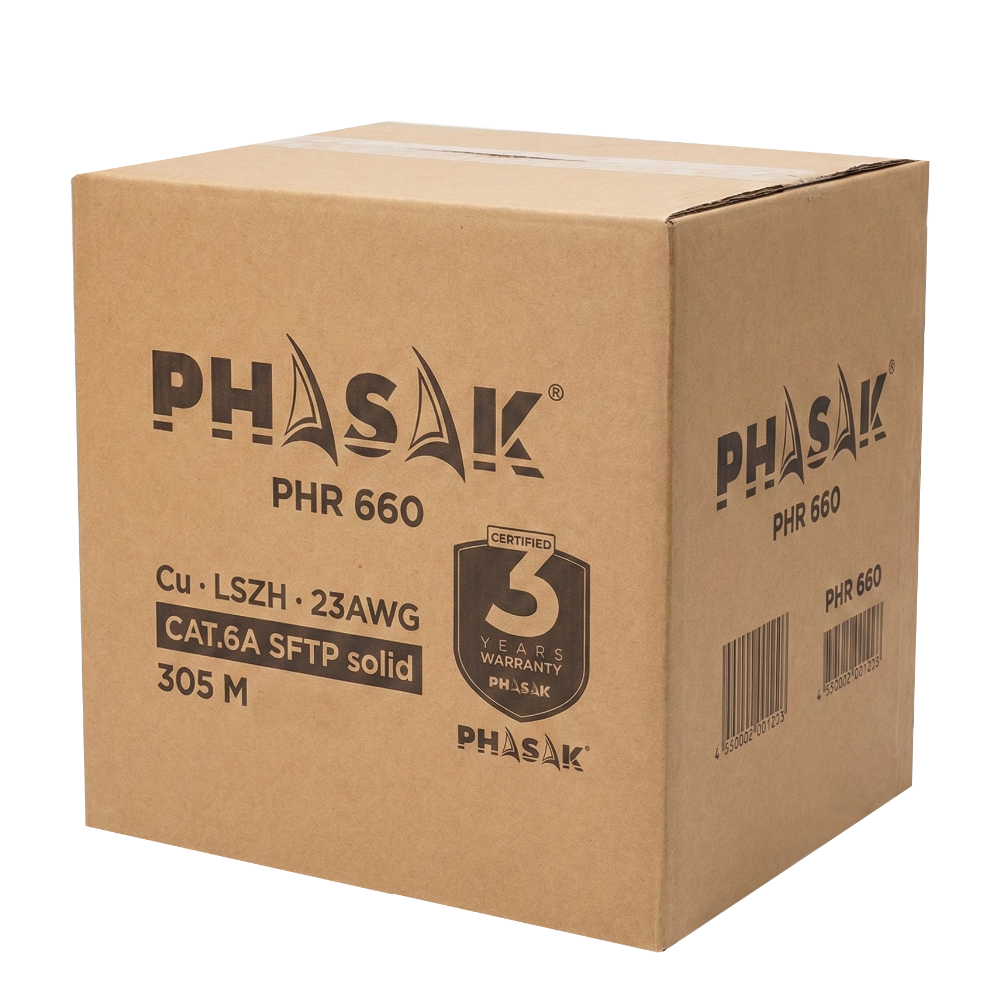

- Presentation: pull box for convenient on-site installation.
Installation best practices
- Respect bend radius and maximum pulling tension during installation.
- Maintain twisted pairs up to termination and crimp with Cat.6A connectivity.
- Proper grounding of shielding and use of shielded keystones/patch panels.
- Certify the link with the test plan corresponding to Cat.6A.
Consult the PHASAK catalogue (PDF) to view the complete range of cables and accessories.
Additional information
| Cable type | S/FTP |
|---|---|
| Category | Cat 6A |
| Material | Copper |
| Type | Solid |
| Fire reaction | Eca |
| Cover | LSZH |
| Additional information | Indoor |
| Certificate | Yes |
| Length | 305 m |
| AWG | 24 AWG |
| Color | Grey |
| Maximum speed | 10 Gbps |
